Part2: Bezier Surfaces with Separable 1D de Casteljau

Methodology

Get the flip image by modifying the given halfedge and related parameter pointers. Below is an example of modifications made to a halfedge:

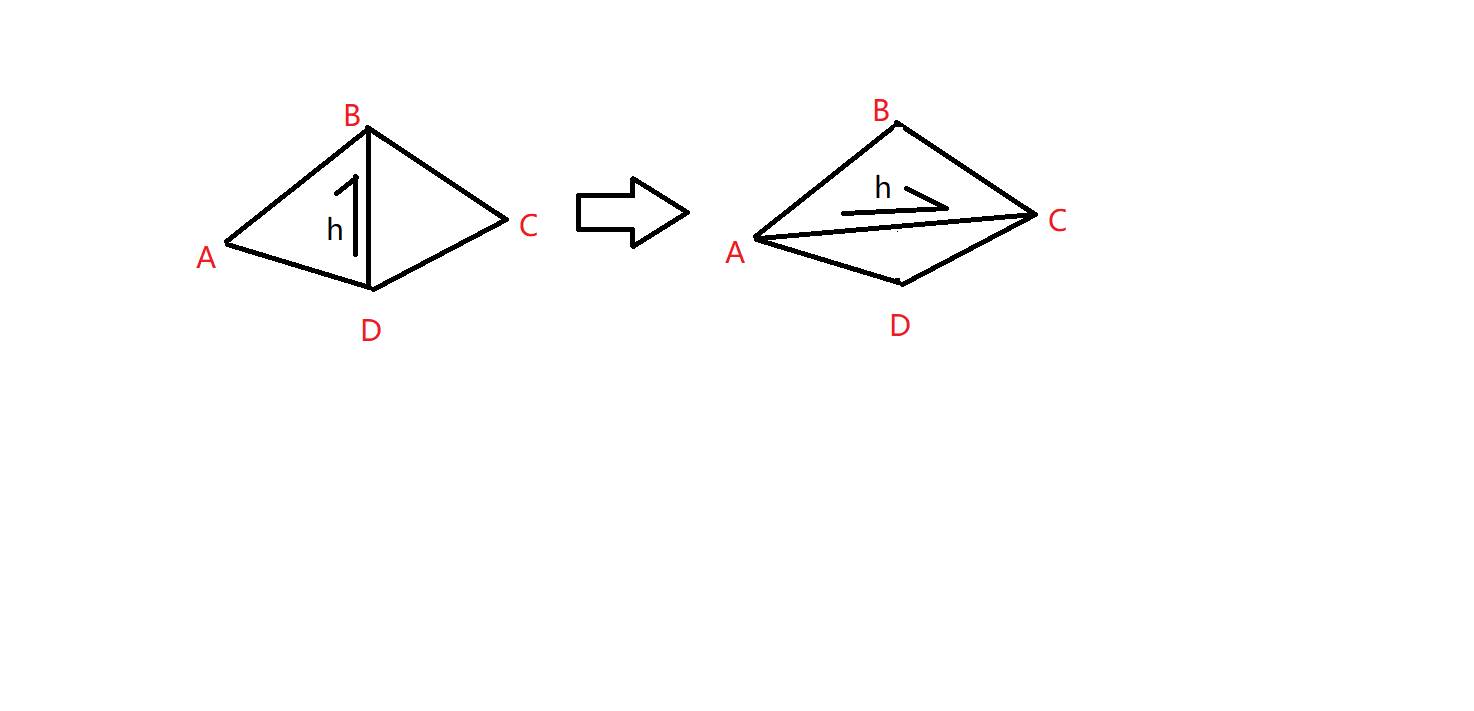

As shown in the diagram, we now need to modify the pointers related to the halfedge h.

example_halfedge

After modification: 1. The starting point of the halfedge becomes A, and it points to D. 2. The twin() of the halfedge remains unchanged, but it now points to the modified halfedge in the opposite direction. 3. The next() of the halfedge becomes CB. 4. The face which the halfedge points to becomes ABC.

Similar operations will also be performed on vertices, faces, and so on. This includes but is not limited to, the following changes: The half-edge pointed to by A becomes h. The faces change from ABD, BCD to ABC, ACD.

The rest of the operations are very similar, so I won't go into further detail. But you can see any information in code.

Implementation

Before providing my code, I would like to explain the parameters:

  1. h is the h shown in the diagram.
  2. th=h->twin()
  3. h/th_next=h/th->next()
  4. h/th_pre->next()=h/th
    C++
      HalfedgeIter h=e0->halfedge();
      HalfedgeIter th=h->twin();
      HalfedgeIter h_next=h->next();
      HalfedgeIter th_next=th->next();
      HalfedgeIter h_pre=h_next->next();
      HalfedgeIter th_pre=th_next->next();


v1,v2,v3,v4 is A,B,C,D

C++
  VertexIter v1=h_pre->vertex();
  VertexIter v2=h->vertex();
  VertexIter v4=th_pre->vertex();
  VertexIter v3=th->vertex();

Total solution code:

C++
EdgeIter HalfedgeMesh::flipEdge( EdgeIter e0 )
  {
    // TODO Part 4.
    // This method should flip the given edge and return an iterator to the flipped edge.

    //edge is not allowed
    if(e0->isBoundary()) return e0;


    HalfedgeIter h=e0->halfedge();
    HalfedgeIter th=h->twin();
    HalfedgeIter h_next=h->next();
    HalfedgeIter th_next=th->next();
    HalfedgeIter h_pre=h_next->next();
    HalfedgeIter th_pre=th_next->next();

    VertexIter v1=h_pre->vertex();
    VertexIter v2=h->vertex();
    VertexIter v4=th_pre->vertex();
    VertexIter v3=th->vertex();

    FaceIter f1=h->face();
    FaceIter f2=th->face();

    //change the halfedge pointer
    h->setNeighbors(th_pre,th,v1,h->edge(),f1);
    th_pre->setNeighbors(h_next,th_pre->twin(),v4,th_pre->edge(),f1);
    h_next->setNeighbors(h,h_next->twin(),v3,h_next->edge(),f1);
    th->setNeighbors(h_pre,h,v4,h->edge(),f2);
    h_pre->setNeighbors(th_next,h_pre->twin(),v1,h_pre->edge(),f2);
    th_next->setNeighbors(th,th_next->twin(),v2,th_next->edge(),f2);

    //change the vertex pointer
    v1->halfedge()=h;
    v2->halfedge()=th_next;
    v3->halfedge()=h_next;
    v4->halfedge()=th;


    //change the face pointer
    f1->halfedge()=h;
    f2->halfedge()=th;

    return e0;
  }

Results

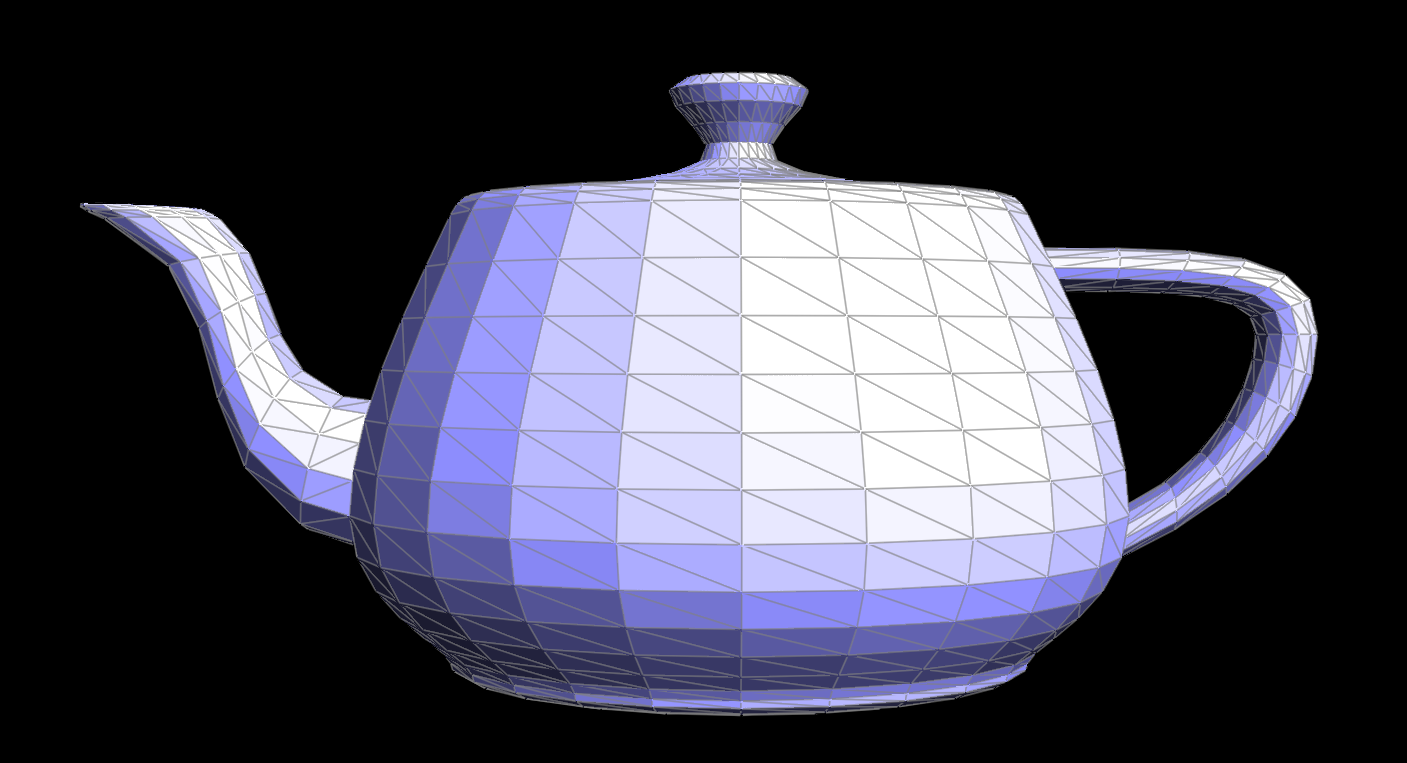

The figure below shows the original teapot.

before flip

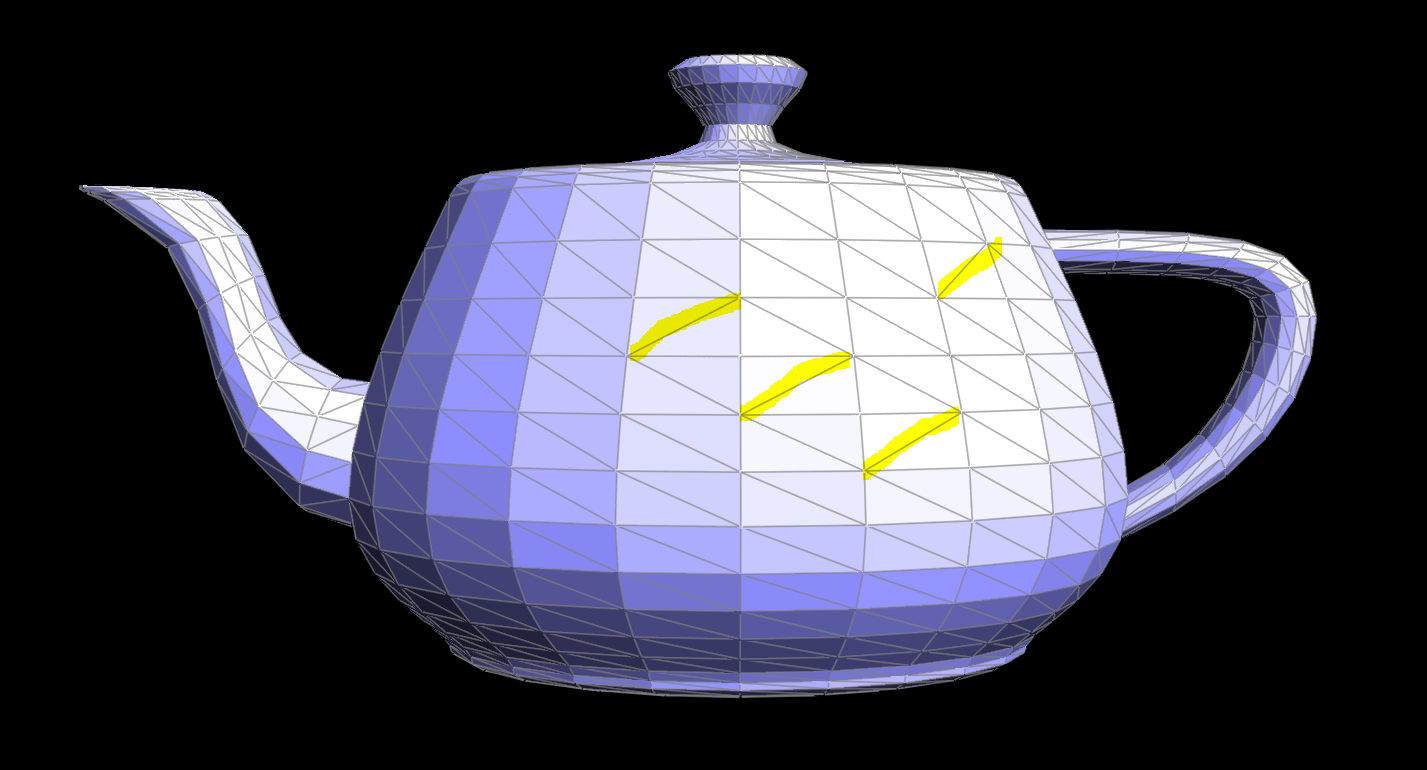

The following image shows the teapot after flipping 4 edges. I have highlighted the modifications with a yellow highlighter.

after flip

Debug experience

I used to make a very simple but fatal problem, which I used HalfedgeCIter instead of HalfedgeIter. So, I found the program always occurred crashed. Finally, with the assistance of my partner and the ChatGPT, I noticed and understood the difference between CIter and Iter.
